Top Page

We produce metal parts processing (large and small machine processing) such as machining center, CNC lathe, CNC milling machine, arc and argon welding, electric discharge machining. We also produce mechatronics device design and production such as designing and manufacturing Non-contact thickness measuring device, vacuum suction tool stand, plant weak electricity measurement devic, Non-contact handling device, ASTM standard impact vibration test machine, Automatic / labor-saving machinery equipment, air-cyrinders,auto parts durability tester and Recreation equipment for elderly welfare facilities etc. in Kawasaki city Kanagawa prefecture. We support from various machine design to production, assembly and adjustment. Especially, we are good at processing various kinds of metal parts by Machining Center, CNC lathe and General lathe. ASTM standard shock vibration test machine design can be manufactured.
Please contact us anything about parts processing by Machining Center, CNC milling machine, NC lathe, general lathe, General-purpose milling, Welding, Electric discharge machining, Drilling, Sheet metal working, Heat treatment (quenching), Polishing,
Drinding, Plating, Painting etc.

To purchase Vacuum Suction Tool Stand click here　　

Topics

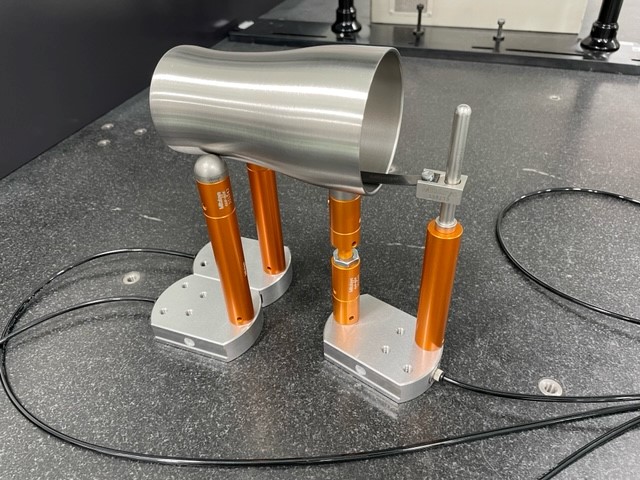

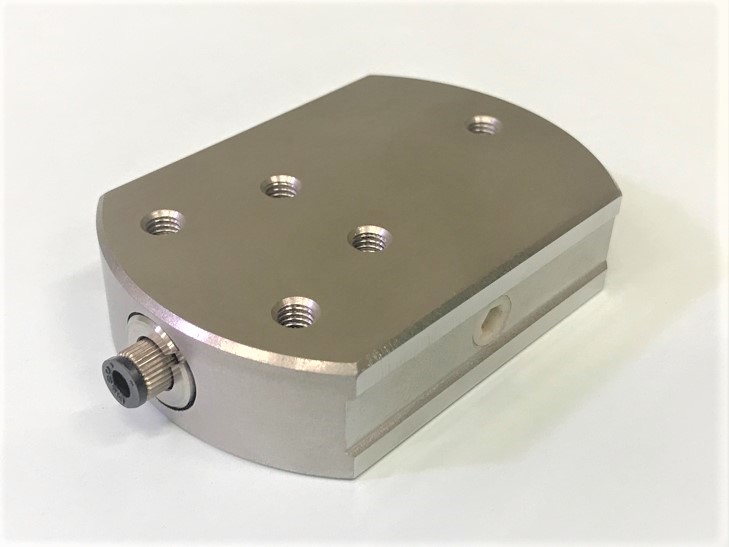

Time Saving Fixture Air-fix 22B1

Started selling "Air-fix22B1", a "time saving fixture" jointly developed by Mitutoyo Co., Ltd. and Sasaki Koki Co., Ltd. under the license of Mitutoyo Co., Ltd. (Kawasaki City, Kanagawa Prefecture), a global precision measuring equipment manufacturer.Furthermore, a joint patent application has been filed between the two companies for this product.
[Patent No. 4616563] [Japanese Patent Application No. 2022-042420]

■ What is Air-fix?
A vacuum suction type fixture that can fix the work at any position when using Mitutoyo's Eco-fix on a coordinate measuring machine or stone surface plate. It is firmly adsorbed on the surface plate just by supplying compressed air.
Adsorption to stone surface plates and ceramic surface plates, which is not possible with magnet fixtures, is possible. (It does not depend on the material of the surface plate.)
Even during suction, it can be easily moved and attached by simply pressing the exhaust port with your fingers.
No vacuum pump is required and suctions easily. It exerts a strong suction force by evacuating through a small vacuum generator (ejector) using compressed air from a compressor that is found in every factory. It can be fixed / sucked freely, and can be easily sucked / opened by pressing the exhaust port with your fingers.
If you place the magnet stand you already have on the Air-fix 22B1, you can use it immediately on a stone surface plate, ceramic surface plate, etc.

Please contact us when you need special customization of the system for your own specific use.
Thickness Measuring Device CL

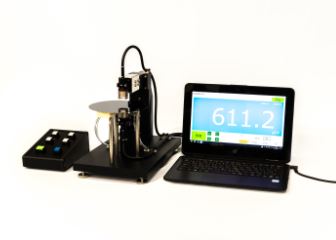

Non-Contact Thickness Measuring Device　OZUMA CL

Laser measurement method

A new lineup is added to the OZUMA series of high precision non-contact thickness measurement devices (non-contact thickness measurement devices) for semiconductor wafers (Si silicon wafers, GaAs, gallium arsenide Ga) arsenic (As), glass, metals, etc. The Non-contact thickness measuring device OZUMA CL is used for thickness (thickness) control in back surface polishing process of semiconductor wafer (Si silicon wafer · GaAs · gallium (Ga) arsenic (As)) etc. or thickness in each manufacturing process It can be used in non-contact measurement for managing thickness (thickness).The resolution is 0.01 μm.
The laser non-contact method prevents the probe etc. from scratching the DUT. Because it is a non-contact type, it is possible to measure the thickness (thickness), warp, parallelism, etc. of the same object repeatedly. As it measures with the laser sensor head which is arranged up and down oppositely, it is not affected by the floating by the "sliding" of the object to be measured and the thickness can be measured accurately.
In addition to pneumatic pressure, we are also manufacturing units such as hydraulic, water pressure and various measuring instruments for customization (air, laser, spectroscopic interferometer, image etc.) and testing machine (vibration, impact, durability etc.). Currently, we are waiting for consultation, such as wanting to automate the manual procedures.

Please click on the image above for the video.
Vacuum Preloaded Air Bearing

Developed under a patent license from Mitutoyo Co., Ltd. (Kawasaki City, Kanagawa Prefecture), a global precision measuring instrument manufacturer.

The preload air bearing was developed by our company under the license of Mitutoyo Co., Ltd. (Mitutoyo Patent [No. 6276318]), a global precision measuring instrument manufacturer.

In addition to the function of vacuum suctioning and fixing on the mounting table like the vacuum suction two-two stand, it has both the functions of being able to move from the mounting table to a predetermined height with high accuracy via an air film. We provide air bearings.

For example, when using on a surface plate, the auto stop function works even if you move to the edge of the surface plate, and it will not fall off the surface plate.

Please use it according to your application. We will customize it if you can consult us about the load capacity etc.

Please contact us when you need special customization of the system for your own specific use.

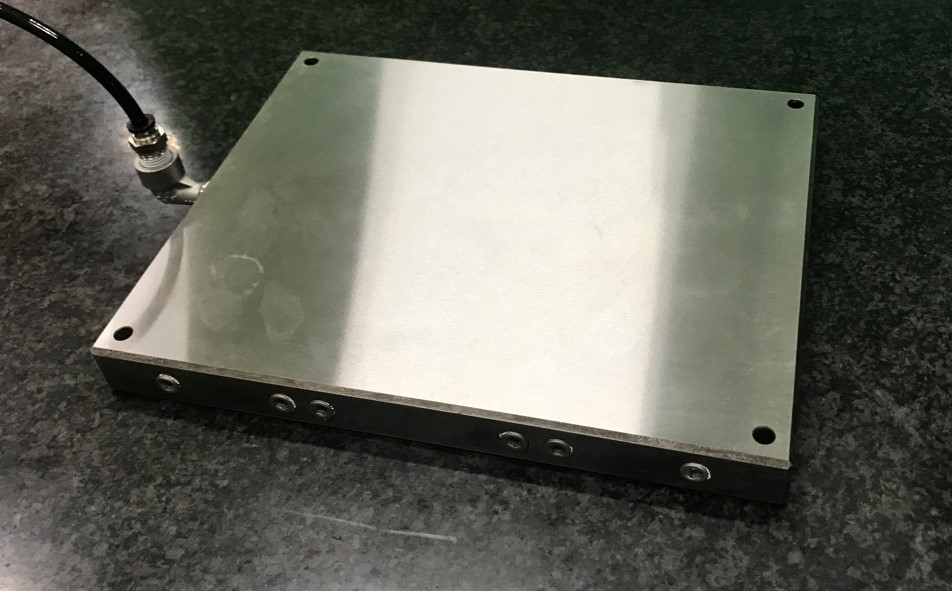

Air Bearings for Transporting Heavy Objects

We provide air bearings that can easily move, rotate, and position heavy objects on a surface plate via an air film.

<What is air bearing for transporting heavy objects? ＞
Air bearings for transporting heavy objects by supplying air from a compressor to the main body and creating an air film between it and the base surface, heavy objects can be levitated. Heavy workpieces can be moved and rotated smoothly with light force. Ideal for positioning heavy workpieces and precision measuring machines. It can also be used on surface plates, machine tool tables, etc. Large and heavy workpieces can be handled by using multiple air bearings for transporting heavy objects.

<Application>
A function that allows you to easily move, rotate, and position heavy objects on a surface plate via an air film.

<Specifications>
Size: 24mm x 100mm x 125mm
Air consumption flow rate measurement in progress
Loaded weight: Estimated value 50kg

Please contact us when you need special customization of the system for your own specific needs.
Vacuum Suction Tool Stand

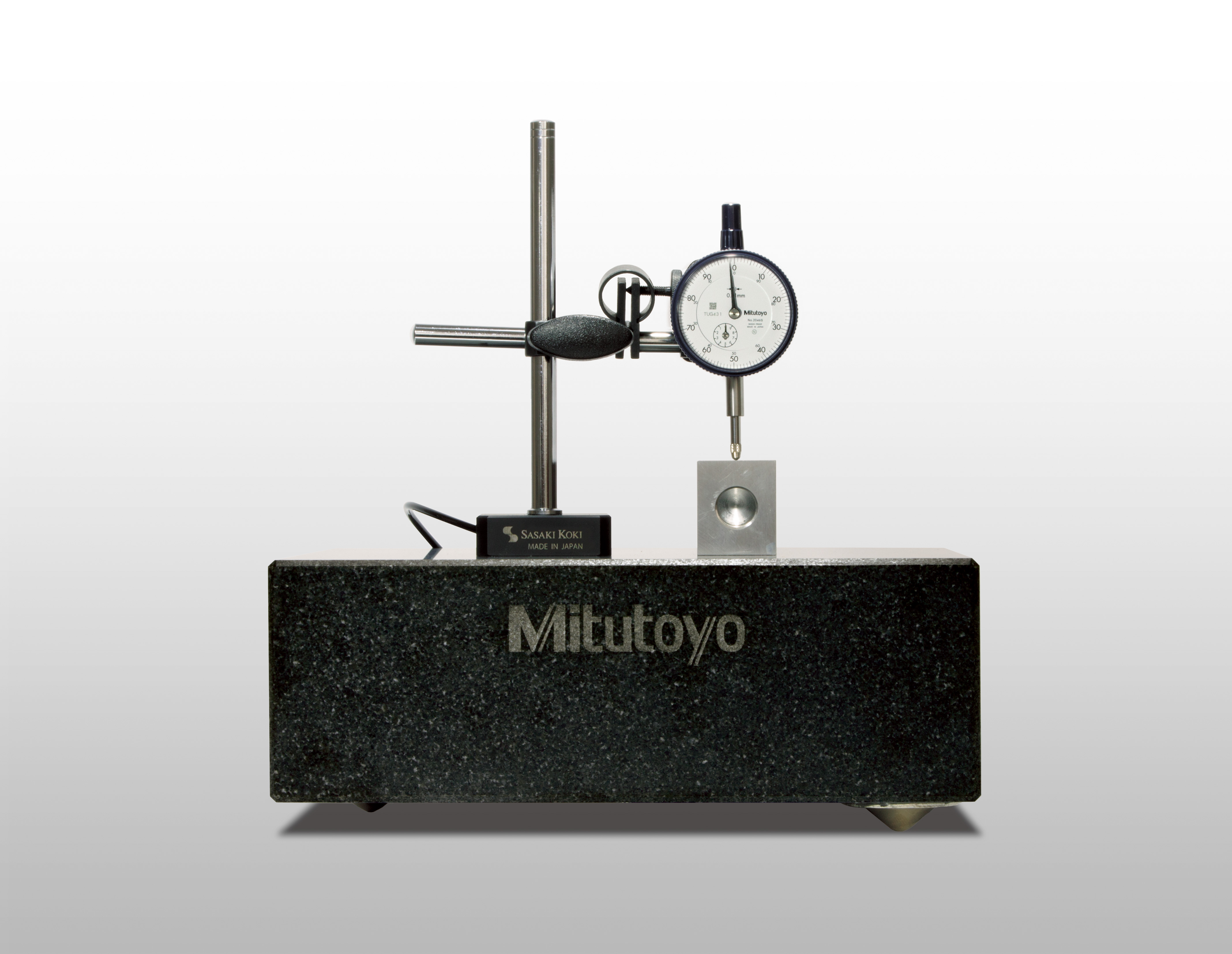

Vacuum Suction Tool Stand

We have developed under the patent license of Mitutoyo Co., Ltd. worldwide precision measuring equipment manufacturer.

Vacuum suction tool stand is the world's first powerful vacuum suction type tool stand developed under license from Mitutoyo Corporation [Mitutoyo patent [4616563]). Although the conventional magnet type tool stand (magnet stand) is limited to use on an iron platen, it can also be applied to stone and ceramic platens with vacuum suction tool stand.

A large and heavy tool stand is used for measurement on a stone plate where a magnet stand can not be used, and workability of accuracy measurement is bad. However, the vacuum suction tool stand was small and lightweight, greatly improving workability. Vacuum pump is unnecessary and easy adsorption. It uses a compressed air from any compressor in any factory and uses a compact vacuum generator (ejector) to evacuate it, thereby exerting powerful adsorption power. Fixing / adsorption can be done freely, and if you hold down the ejector it can be easily adsorbed / released.

If you already have your magnet stand on a vacuum chucking tool stand, you can use it immediately on a stone table, ceramic platen, etc. For the development of this vacuum suction tool stand, we got the advice from retiree Kimura master of Mitutoyo Co., Ltd., inventor of the patent, and finally commercialized it. There is no other product. Please come and experience the adsorption power different from the magnet stand by all means.

The vacuum suction tool stand was certified as the 12th Kawasaki Monozukuri brand.

Please click on the image above for details.

Please contact us when you need special customization of the system for your own speciic use.
Plant electrical measuring device

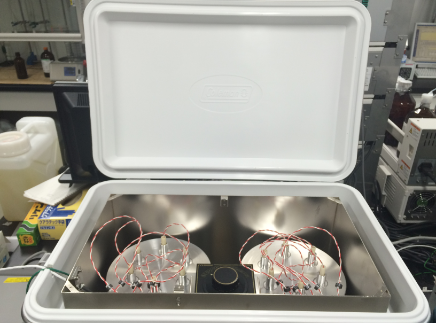

Plant weak electrical measuring device

Also called a water potential measuring device, it can accurately measure the physiological state of plants.

We have developed a device that enables sensitive measurement in response to the research needs of measuring minute potential changes without noise.

Twelve thermocouple sensors are placed in a chamber that blocks external noise, and the water potential that controls the growth of tissue-cultured plants under environmental stress is measured at the nanovolt level.

In response to a request from the Faculty of Agriculture, Meiji University, we designed and developed it, commercialized it, and delivered it.

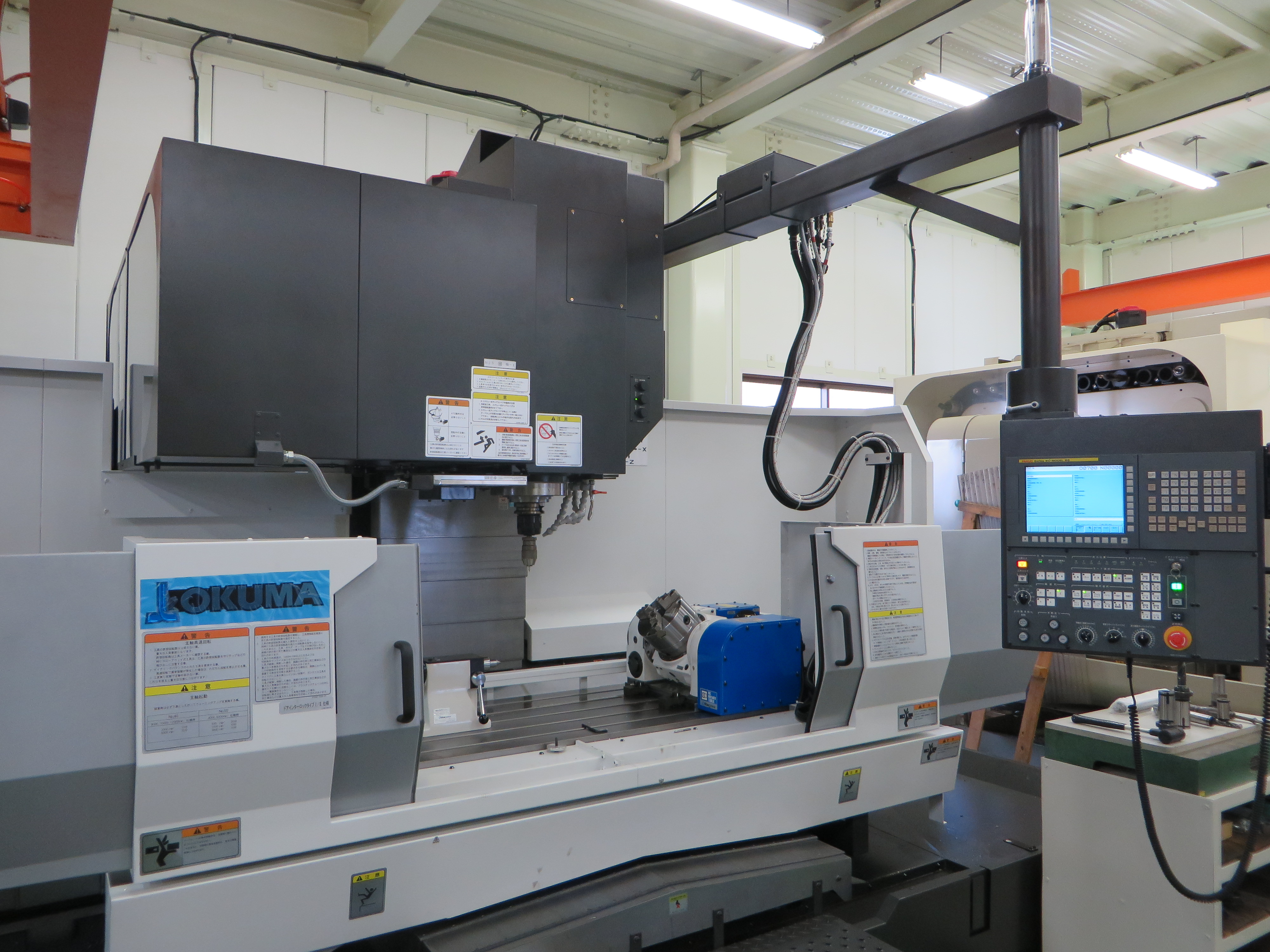

5 Axis Machining Center

We have introduced 5 axis machining center. X axis 1,300mm Y axis 610mm A axis Machining center with C axis, CNC milling cutter, CNC lathe, general lathe, etc.

Please leave the small scale production to us!

We can manufacture measurement unit using air / laser / spectroscopic interferometer. In addition, please consult us about the manufacture of mechanical equipment such as pneumatic control, hydraulic control, water pressure control.

The impulsive vibration testing machine for automobile headlamps ASTM standard.

We can propose design of shock vibration tester for automobile head lamp according to customer's specifications. The ASTM standard is the standard developed and issued by ASTM International. Our company has abundant experience of shock vibration tester compatible with ASTM standard.

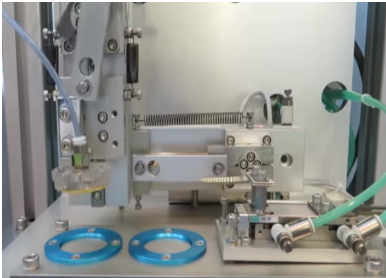

Auto parts composite load durability test apparatus.

We have extensive experience in designing and manufacturing durability testing machines to apply loads from various directions of automobile parts and to conduct durability tests under severe conditions.

For inquiries Please click the above photo.

Please contact us when you need special customization of the system for your own specific use.
Non-contact handling device

This is a handling device for non-contact transfer of glasses and silicon wafers for semiconductors.

"Mr. Non-Contact" is a non-contact handling device to transport silicon wafers and glasses. As you can see the above video, the acrylic board and the yellow round board are not in contact. Air is sandwiched between them and is conveyed in a floating state.

We apply fluid dynamics by Bernoulli's theorem and we will do non-contact handling by the action of squirting air. It is a groundbreaking non-contact handling device which uses air of a compressor unnecessary for vacuum pump. It is possible to support both automatic conveyance and manual conveyance.

"Mr. Non-Contact" will solve the following problems.
* Cross contamination
* Damaged or scratched the wafer
* Handling ultra thin wafers
* Point contact holding of wafer
* Wafer transfer mechanism
* Levitation of wafers

Advantages of "Mr. Non-Contact"
→ Hold non-contact
→ Low price
→ strong holding power
→ Consumption flow rate is low
→ Engineering

Principle of non-contact transfer

Please contact us when you need special customization of the system for your own specific use.

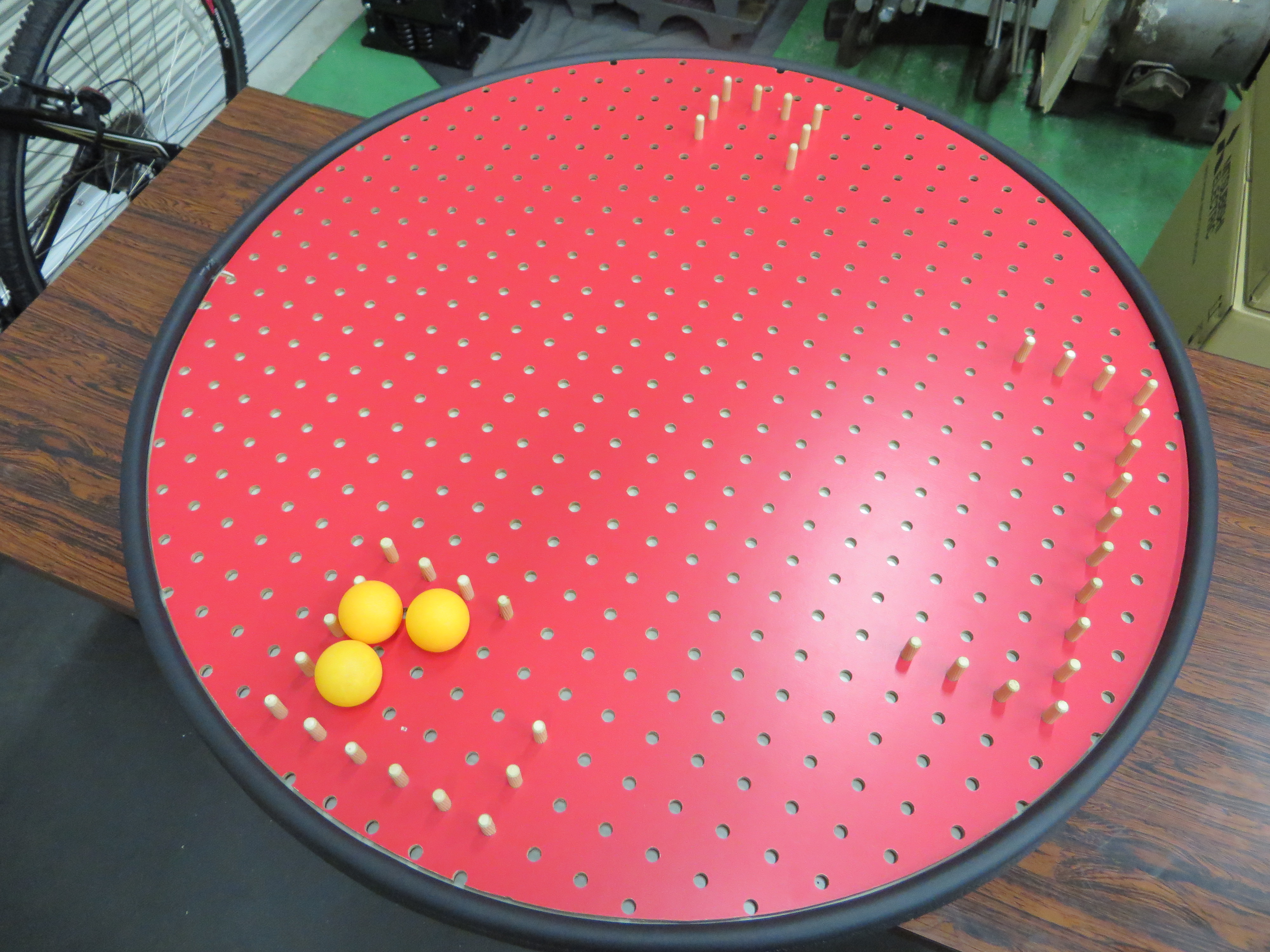

Recreational Equipment Legs

The purpose of this device is to increase muscle strength while enjoying using the feet.

To recreational equipment "Roller Boy" special site

It is used for exercise equipment for elderly people in recreation such as nursing home as training equipment.
To nursing care welfare facilities and those supporting the elderly NPO.

It is a recreation tool, exercise equipment, training equipment that allows elderly people and children to draw pictures and play games with their feet and hands in groups. Recreation equipment "Roller Boy" is "Recreation equipment that promotes health while enjoying with everyone". Degradation of motor function due to aging or disability is a cause of falling. Under the Long-Term Care Insurance Law in Japan, "Preventive Long-Term Care" is covered by insurance, and recreation of leg training is required. "Roller Boy" can be used as exercise equipment / training equipment to improve "recreation function" and "exercise capacity".

To the mental health welfare center and development consultation support center in Japan.

You can use "Roller Boy" for youth independence support purposes in adulthood group work for people with developmental disabilities. It is used as a communication game at the time of Social Skill Training (SST). It is a recreation device that you can experience voice multiplication, breathing, nurturing coordination etc.

What is Social Skill Training (SST)? It is a skill to run interpersonal relationships and collective actions well. Sometimes it is called social life skill training.

Recreational equipment "Roller Boy" is exercise equipment / training equipment certified as the 2011 Kawasaki monozukuri brand.

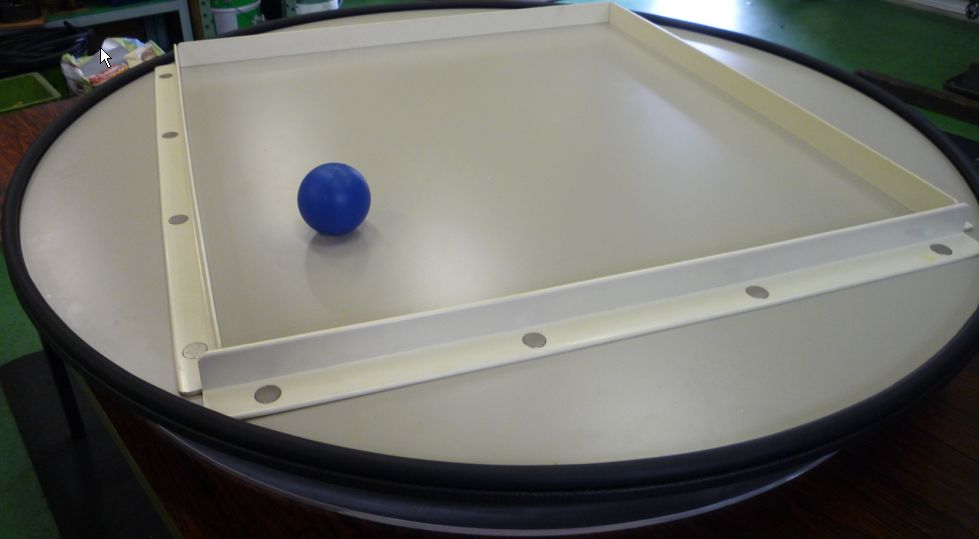

Recreational Equipment Brain

We are using it for recreation at day service and nursing home. We aim to activate the brain by increasing the blood flow of the brain by carrying out games using fingers. "Brain board" was born by industry-university collaboration with Kanagawa Institute of Technology. It is measured and confirmed that the blood flow of the brain is increasing by actually playing the game.
Wine Opener for Business Use

In order to use a large amount of wine when making a sauce of grilled meat in a barbecue restaurant, it is necessary to open a large number of wine bottles, and in an established wine opener, it is difficult to work and it is necessary to easily and easily open wine bottles. It is a product developed in response.
Empty Can Crushing Machine

Cans are products that can automatically squeeze empty cans of coffee and juice and reduce the volume (compact so as not to be bulky) to reduce the storage and disposal capacity.
Aircraft engine cover measurement equipment

Measuring equipment to measure unevenness when repairing unevenness of engine cover for aircrafts.
