Preloaded Air Bearing
We provide air bearings
that have both functions, such as the ability to move objects from
the mounting table through an air film while maintaining a high
precision at a predetermined height.
Vacuum
Preloaded Air Bearing Movie
<What
is Vacuum Preloaded Air Bearing？>
Developed under patent
license from Mitutoyo Co., Ltd. (Kawasaki City, Kanagawa Prefecture),
a global precision measuring equipment manufacturer.
The preload air bearing was developed by our company under a patent
license (Mitutoyo Patent No. 6276318) from Mitutoyo Co., Ltd., a
world-famous manufacturer of precision measuring instruments.

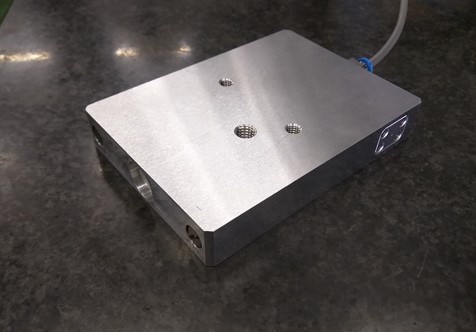

In addition to the function of vacuum suction and fixation on a
surface plate like the vacuum suction tool stand, it also has the
function of being able to move from the surface plate using an air
film while maintaining a predetermined height with high precision.
We provide air bearings.
For example, when using it on a surface plate, the auto-stop function
will work to prevent it from falling off the surface plate even
if it moves to the edge of the surface plate.
Please use it according to your purpose. We can customize it if
you discuss the load capacity etc.
<Use>
① A function that allows
heavy objects to be moved while maintaining them at a specified
height from the surface plate with high precision via an air film.
② Function that can be fixed by vacuum suction on a surface plate,
similar to the vacuum suction stand
<Specifications>
Size: 18mm
x 80mm x 125mm, weight 395g
Air consumption flow rate measurement in progress
Adsorption retention measurement in progress
Quietness (operation noise) measurement
in progress
Loaded weight measurement
in progress
Supply air: 0.4MPa
＜Commodity composition＞
Optional
item
(2) 6-Port Manifold (3) 3-Port Manifold (4) Piping set

Piping
set configuration
*Piping set configuration
Φ4 tube, Φ6 tube, hand valve, reducer, tube fitting, coupler (total
length about 3 m)
* Mitutoyo standard products are recommended for spring clips and
screw adapters.
(5) Clamping Tool Extension Set-A
Φ12 Location
Pin L100×6pcs
Φ12 Location
Pin L 50×6pcs
Φ12 Location
Pin L 25×6pcs
Straight Pin×3pcs
Spring Clip×3pcs
Common precautions
for vacuum system equipment
Please be sure to read before using Air-fix.
Please be sure
to read before using.
Warning
|
1
|
If
the adsorbent (workpiece) falls and is considered dangerous,
take safety measures by taking fall prevention measures. |
|
2
|
Do not use the vacuum circuit side where pressure of 0.1Mpa
or more is constantly applied. Vacuum equipment does not have
an explosion-proof structure, so there is a risk of damage to
the main unit. |
|
3
|
Please
be careful about the decrease in vacuum pressure due to troubles
in the supply air and supply power supply. Take safety measures
as there is a risk that the adsorbed material will fall due
to the decrease in adsorption power. |
|
4
|
When
two or more pads are connected to one ejector in a vacuum circuit,
if one pad causes adsorption failure (leakage), there is a risk
that the other pads will come off due to a drop in vacuum pressure. |
|
5
|
Do
not use it to block the exhaust port of the ejector or increase
the exhaust resistance. It may not generate a vacuum or cause
a decrease in vacuum pressure. |
|
6
|
Do
not use in an atmosphere of corrosive gas, flammable gas, explosive
gas, chemicals, seawater, water vapor or where it adheres. Also,
never inhale. |
|
7
|
Please
attach a protective cover in places exposed to sunlight. |
|
8
|
Perform
regular maintenance and inspection of the silencer element of
the ejector and the filter element of the vacuum filter. Clogged
elements may cause performance degradation or trouble. |
|
9
|
When
replacing the element, make sure you understand the vacuum ejector
replacement element well. |
|
10
|
Check
each port of the ejector by checking the text and the display
on the main body, and perform piping. Incorrect piping may cause
damage to the main unit. |
|
11
|
For
the ejector supply air, remove drains and dust and use clean
air. Also, do not refuel with a lubricator. Impurities and oil
contained in compressed air may cause malfunction and performance
deterioration. |
|
12
|
Do not give strong tensile force or extreme bending to the lead
wire. It may cause disconnection. |
|
13
|
If
the product has a locknut, be sure to tighten it by hand without
using a tool. If tightened with a tool, it may cause damage
to the locknut or the main body. Also, if it cannot be tightened
securely, the locknut may loosen and the initial setting may
be incorrect. |
|
14
|
Do
not forcibly swing or rotate the product whose resin body rotates.
It may cause damage or leakage of the main body. |
